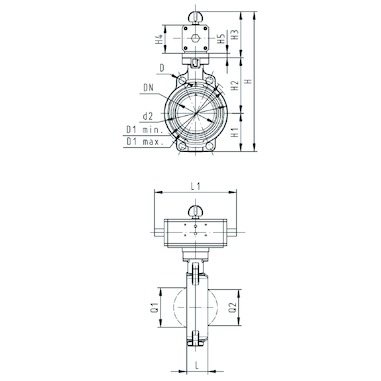

Butterfly valve type 240 PVC-C DA Without manual override
- Ďalšie informácie
Ďalšie informácie
| d(mm) | 63, 75, 90, 110, 140, 160, 225 |
|---|---|
| DN | 100, 125, 150, 200, 50, 65, 80 |
| PN(bar) | 10 |
| kv-value (Δp=1 bar;l⁄min) | 11500, 1470, 16600, 2200, 3000, 39600, 6500 |
| Tesnenie | EPDM, FKM, PTFE |
| Kat. číslo | d(mm) | DN | PN(bar) | kv-value (Δp=1 bar;l⁄min) | Tesnenie | Množstvo | |
|---|---|---|---|---|---|---|---|
| 199 240 242 | 63 | 50 | 10 | 1470 | EPDM | ||
| 199 240 243 | 75 | 65 | 10 | 2200 | EPDM | ||
| 199 240 244 | 90 | 80 | 10 | 3000 | EPDM | ||
| 199 240 245 | 110 | 100 | 10 | 6500 | EPDM | ||
| 199 240 246 | 140 | 125 | 10 | 11500 | EPDM | ||
| 199 240 247 | 160 | 150 | 10 | 16600 | EPDM | ||
| 199 240 248 | 225 | 200 | 10 | 39600 | EPDM | ||
| 199 240 262 | 63 | 50 | 10 | 1470 | FKM | ||
| 199 240 263 | 75 | 65 | 10 | 2200 | FKM | ||
| 199 240 264 | 90 | 80 | 10 | 3000 | FKM | ||
| 199 240 265 | 110 | 100 | 10 | 6500 | FKM | ||
| 199 240 266 | 140 | 125 | 10 | 11500 | FKM | ||
| 199 240 267 | 160 | 150 | 10 | 16600 | FKM | ||
| 199 240 268 | 225 | 200 | 10 | 39600 | FKM | ||
| 199 240 682 | 63 | 50 | 10 | 1470 | PTFE | ||
| 199 240 683 | 75 | 65 | 10 | 2200 | PTFE | ||
| 199 240 684 | 90 | 80 | 10 | 3000 | PTFE | ||
| 199 240 685 | 110 | 100 | 10 | 6500 | PTFE | ||
| 199 240 686 | 140 | 125 | 10 | 11500 | PTFE | ||
| 199 240 687 | 160 | 150 | 10 | 16600 | PTFE | ||
| 199 240 688 | 225 | 200 | 10 | 39600 | PTFE |
