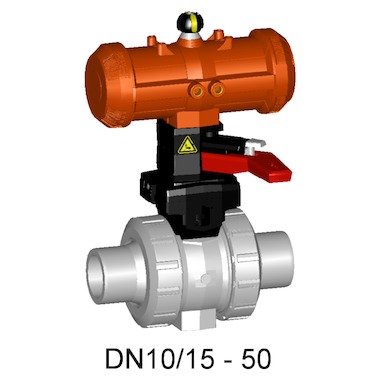

GV PVC-C typ 230 FC d-d do tvarovky
- Popis
- Ďalšie informácie
Popis
s núdzovou ručnou pákou
Ďalšie informácie
| d(mm) | 16, 20, 25, 32, 40, 50, 63 |
|---|---|
| DN | 10, 15, 20, 25, 32, 40, 50 |
| PN(bar) | 10 |
| kv-value (Δp=1 bar;l⁄min) | 1000, 1600, 185, 3100, 350, 70, 700 |
| Tesnenie | EPDM, FKM |
| Kat. číslo | d(mm) | DN | PN(bar) | kv-value (Δp=1 bar;l⁄min) | Tesnenie | Množstvo | |
|---|---|---|---|---|---|---|---|
| 199 230 422 | 16 | 10 | 10 | 70 | EPDM | ||
| 199 230 423 | 20 | 15 | 10 | 185 | EPDM | ||
| 199 230 424 | 25 | 20 | 10 | 350 | EPDM | ||
| 199 230 425 | 32 | 25 | 10 | 700 | EPDM | ||
| 199 230 426 | 40 | 32 | 10 | 1000 | EPDM | ||
| 199 230 427 | 50 | 40 | 10 | 1600 | EPDM | ||
| 199 230 428 | 63 | 50 | 10 | 3100 | EPDM | ||
| 199 230 432 | 16 | 10 | 10 | 70 | FKM | ||
| 199 230 433 | 20 | 15 | 10 | 185 | FKM | ||
| 199 230 434 | 25 | 20 | 10 | 350 | FKM | ||
| 199 230 435 | 32 | 25 | 10 | 700 | FKM | ||
| 199 230 436 | 40 | 32 | 10 | 1000 | FKM | ||
| 199 230 437 | 50 | 40 | 10 | 1600 | FKM | ||
| 199 230 438 | 63 | 50 | 10 | 3100 | FKM |
