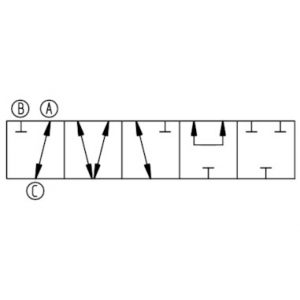

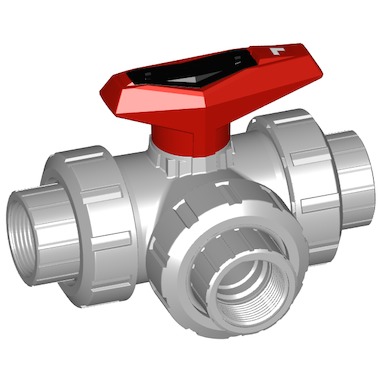

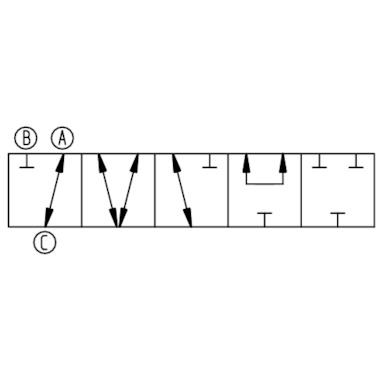

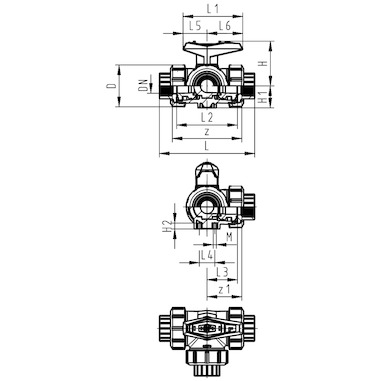

GV PVC-C typ 543 L-port Rp
- Ďalšie informácie
Ďalšie informácie
| Rp | 1 1/2", 1 1/4", 1", 1/2", 2", 3/4", 3/8" |
|---|---|
| DN | 10, 15, 20, 25, 32, 40, 50 |
| PN(bar) | 10 |
| kv-value (Δp=1 bar;l⁄min) | 1230, 150, 280, 480, 50, 620, 75 |
| Tesnenie | EPDM, FKM |
| Kat. číslo | Rp | DN | PN(bar) | kv-value (Δp=1 bar;l⁄min) | Tesnenie | Množstvo | |
|---|---|---|---|---|---|---|---|
| 163 543 041 | 3/8" | 10 | 10 | 50 | EPDM | ||
| 163 543 042 | 1/2" | 15 | 10 | 75 | EPDM | ||
| 163 543 043 | 3/4" | 20 | 10 | 150 | EPDM | ||
| 163 543 044 | 1" | 25 | 10 | 280 | EPDM | ||
| 163 543 045 | 1 1/4" | 32 | 10 | 480 | EPDM | ||
| 163 543 046 | 1 1/2" | 40 | 10 | 620 | EPDM | ||
| 163 543 047 | 2" | 50 | 10 | 1230 | EPDM | ||
| 163 543 051 | 3/8" | 10 | 10 | 50 | FKM | ||
| 163 543 052 | 1/2" | 15 | 10 | 75 | FKM | ||
| 163 543 053 | 3/4" | 20 | 10 | 150 | FKM | ||
| 163 543 054 | 1" | 25 | 10 | 280 | FKM | ||
| 163 543 055 | 1 1/4" | 32 | 10 | 480 | FKM | ||
| 163 543 056 | 1 1/2" | 40 | 10 | 620 | FKM | ||
| 163 543 057 | 2" | 50 | 10 | 1230 | FKM |
