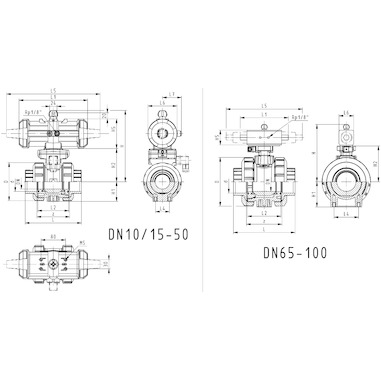

GV Typ 232 PVDF FO polyfúzne bez núdzového ručného ovládania
- Ďalšie informácie
Ďalšie informácie
| d(mm) | 16, 20, 25, 32, 40, 50, 63, 75, 90, 110 |
|---|---|
| DN | 10, 100, 15, 20, 25, 32, 40, 50, 65, 80 |
| PN(bar) | 10 |
| kv-value (Δp=1 bar;l⁄min) | 1000, 11000, 1600, 185, 3100, 350, 5000, 70, 700, 7000 |
| Tesnenie | FKM |
| Kat. číslo | d(mm) | DN | PN(bar) | kv-value (Δp=1 bar;l⁄min) | Tesnenie | Množstvo | |
|---|---|---|---|---|---|---|---|
| 199 232 172 | 16 | 10 | 10 | 70 | FKM | ||
| 199 232 173 | 20 | 15 | 10 | 185 | FKM | ||
| 199 232 174 | 25 | 20 | 10 | 350 | FKM | ||
| 199 232 175 | 32 | 25 | 10 | 700 | FKM | ||
| 199 232 176 | 40 | 32 | 10 | 1000 | FKM | ||
| 199 232 177 | 50 | 40 | 10 | 1600 | FKM | ||
| 199 232 178 | 63 | 50 | 10 | 3100 | FKM | ||
| 199 232 179 | 75 | 65 | 10 | 5000 | FKM | ||
| 199 232 180 | 90 | 80 | 10 | 7000 | FKM | ||
| 199 232 181 | 110 | 100 | 10 | 11000 | FKM |
