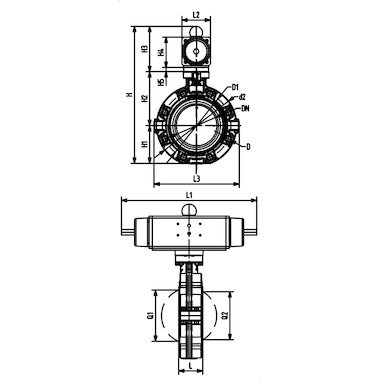

Lugstyle butterfly valve type 244 PVC-C DA (Double acting) Without manual override
- Ďalšie informácie
Ďalšie informácie
| d(mm) | 63, 75, 90, 110, 140, 160, 225, 280, 315 |
|---|---|
| DN | 100, 125, 150, 200, 250, 300, 50, 65, 80 |
| PN(bar) | 10 |
| kv-value (Δp=1 bar;l⁄min) | 11500, 1470, 16600, 2200, 3000, 39600, 55200, 6500, 80000 |
| Tesnenie | EPDM, FKM |
| Kat. číslo | d(mm) | DN | PN(bar) | kv-value (Δp=1 bar;l⁄min) | Tesnenie | Množstvo | |
|---|---|---|---|---|---|---|---|
| 199 244 242 | 63 | 50 | 10 | 1470 | EPDM | ||
| 199 244 243 | 75 | 65 | 10 | 2200 | EPDM | ||
| 199 244 244 | 90 | 80 | 10 | 3000 | EPDM | ||
| 199 244 245 | 110 | 100 | 10 | 6500 | EPDM | ||
| 199 244 246 | 140 | 125 | 10 | 11500 | EPDM | ||
| 199 244 247 | 160 | 150 | 10 | 16600 | EPDM | ||
| 199 244 248 | 225 | 200 | 10 | 39600 | EPDM | ||
| 199 244 249 | 280 | 250 | 10 | 55200 | EPDM | ||
| 199 244 250 | 315 | 300 | 10 | 80000 | EPDM | ||
| 199 244 262 | 63 | 50 | 10 | 1470 | FKM | ||
| 199 244 263 | 75 | 65 | 10 | 2200 | FKM | ||
| 199 244 264 | 90 | 80 | 10 | 3000 | FKM | ||
| 199 244 265 | 110 | 100 | 10 | 6500 | FKM | ||
| 199 244 266 | 140 | 125 | 10 | 11500 | FKM | ||
| 199 244 267 | 160 | 150 | 10 | 16600 | FKM | ||
| 199 244 268 | 225 | 200 | 10 | 39600 | FKM | ||
| 199 244 269 | 280 | 250 | 10 | 55200 | FKM | ||
| 199 244 270 | 315 | 300 | 10 | 80000 | FKM |
