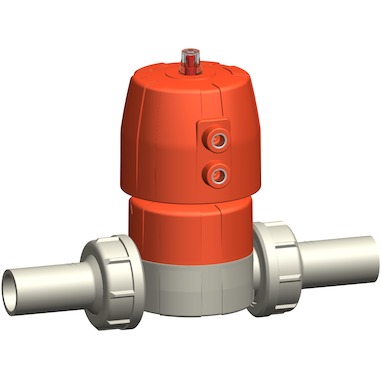

Membránový ventil DIASTAR TEN FC PP-H na tupo s prevlečnými maticami
- Ďalšie informácie
Ďalšie informácie
| d(mm) | 20, 25, 32, 40, 50, 63 |
|---|---|
| DN | 15, 20, 25, 32, 40, 50 |
| PN(bar) | 10/10*, 10/6* |
| kv-value (Δp=1 bar;l⁄min) | 125, 1263, 1728, 271, 481, 759 |
| Tesnenie | EPDM, FKM, PTFE/EPDM, PTFE/FKM |
| Kat. číslo | d(mm) | DN | PN(bar) | kv-value (Δp=1 bar;l⁄min) | Tesnenie | Množstvo | |
|---|---|---|---|---|---|---|---|
| 167 624 112 | 20 | 15 | 10/10* | 125 | EPDM | ||
| 167 624 113 | 25 | 20 | 10/10* | 271 | EPDM | ||
| 167 624 114 | 32 | 25 | 10/10* | 481 | EPDM | ||
| 167 624 115 | 40 | 32 | 10/10* | 759 | EPDM | ||
| 167 624 116 | 50 | 40 | 10/10* | 1263 | EPDM | ||
| 167 624 117 | 63 | 50 | 10/6* | 1728 | EPDM | ||
| 167 624 162 | 20 | 15 | 10/10* | 125 | FKM | ||
| 167 624 163 | 25 | 20 | 10/10* | 271 | FKM | ||
| 167 624 164 | 32 | 25 | 10/10* | 481 | FKM | ||
| 167 624 165 | 40 | 32 | 10/10* | 759 | FKM | ||
| 167 624 166 | 50 | 40 | 10/10* | 1263 | FKM | ||
| 167 624 167 | 63 | 50 | 10/6* | 1728 | FKM | ||
| 167 624 132 | 20 | 15 | 10/10* | 125 | PTFE/EPDM | ||
| 167 624 133 | 25 | 20 | 10/10* | 271 | PTFE/EPDM | ||
| 167 624 134 | 32 | 25 | 10/10* | 481 | PTFE/EPDM | ||
| 167 624 135 | 40 | 32 | 10/10* | 759 | PTFE/EPDM | ||
| 167 624 136 | 50 | 40 | 10/10* | 1263 | PTFE/EPDM | ||
| 167 624 137 | 63 | 50 | 10/6* | 1728 | PTFE/EPDM | ||
| 167 624 152 | 20 | 15 | 10/10* | 125 | PTFE/FKM | ||
| 167 624 153 | 25 | 20 | 10/10* | 271 | PTFE/FKM | ||
| 167 624 154 | 32 | 25 | 10/10* | 481 | PTFE/FKM | ||
| 167 624 155 | 40 | 32 | 10/10* | 759 | PTFE/FKM | ||
| 167 624 156 | 50 | 40 | 10/10* | 1263 | PTFE/FKM | ||
| 167 624 157 | 63 | 50 | 10/6* | 1728 | PTFE/FKM |
