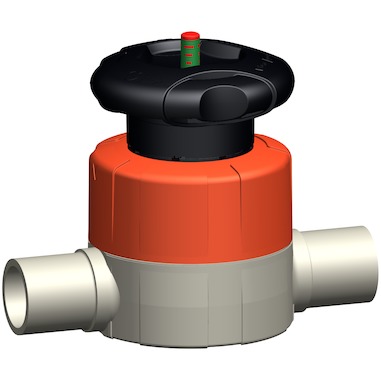

Membránový ventil Typ 515 PP-H na tupo silicone free
- Ďalšie informácie
Ďalšie informácie
| d(mm) | 20, 25, 32, 40, 50, 63 |
|---|---|
| DN | 15, 20, 25, 32, 40, 50 |
| PN(bar) | 10 |
| kv-value (Δp=1 bar;l⁄min) | 125, 1263, 1728, 271, 481, 759 |
| Tesnenie | EPDM, PTFE/EPDM |
| Kat. číslo | d(mm) | DN | PN(bar) | kv-value (Δp=1 bar;l⁄min) | Tesnenie | Množstvo | |
|---|---|---|---|---|---|---|---|
| 167 515 122 | 20 | 15 | 10 | 125 | EPDM | ||
| 167 515 123 | 25 | 20 | 10 | 271 | EPDM | ||
| 167 515 124 | 32 | 25 | 10 | 481 | EPDM | ||
| 167 515 125 | 40 | 32 | 10 | 759 | EPDM | ||
| 167 515 126 | 50 | 40 | 10 | 1263 | EPDM | ||
| 167 515 127 | 63 | 50 | 10 | 1728 | EPDM | ||
| 167 515 172 | 20 | 15 | 10 | 125 | PTFE/EPDM | ||
| 167 515 173 | 25 | 20 | 10 | 271 | PTFE/EPDM | ||
| 167 515 174 | 32 | 25 | 10 | 481 | PTFE/EPDM | ||
| 167 515 175 | 40 | 32 | 10 | 759 | PTFE/EPDM | ||
| 167 515 176 | 50 | 40 | 10 | 1263 | PTFE/EPDM | ||
| 167 515 177 | 63 | 50 | 10 | 1728 | PTFE/EPDM |
