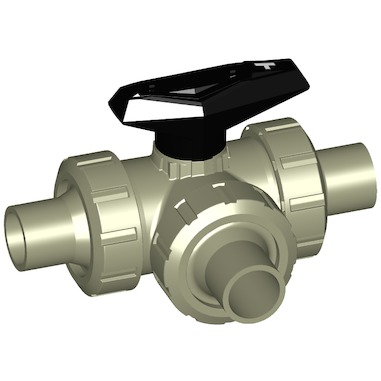

GV type 543 horizontálny T-vŕtanie na tupo+IR
- Ďalšie informácie
Ďalšie informácie
| d(mm) | 20, 25, 32, 40, 50, 63 |
|---|---|
| DN | 10, 15, 20, 25, 32, 40, 50 |
| PN(bar) | 10 |
| kv-value (Δp=1 bar;l⁄min) | 1290, 140, 1910, 200, 3100, 470, 793 |
| Tesnenie | EPDM, FKM |
| Kat. číslo | d(mm) | DN | PN(bar) | kv-value (Δp=1 bar;l⁄min) | Tesnenie | Množstvo | |
|---|---|---|---|---|---|---|---|
| 167 543 262 | 20 | 15 | 10 | 200 | EPDM | ||
| 167 543 263 | 25 | 20 | 10 | 470 | EPDM | ||
| 167 543 264 | 32 | 25 | 10 | 793 | EPDM | ||
| 167 543 265 | 40 | 32 | 10 | 1290 | EPDM | ||
| 167 543 266 | 50 | 40 | 10 | 1910 | EPDM | ||
| 167 543 267 | 63 | 50 | 10 | 3100 | EPDM | ||
| 167 543 272 | 20 | 15 | 10 | 200 | FKM | ||
| 167 543 273 | 25 | 20 | 10 | 470 | FKM | ||
| 167 543 274 | 32 | 25 | 10 | 793 | FKM | ||
| 167 543 275 | 40 | 32 | 10 | 1290 | FKM | ||
| 167 543 276 | 50 | 40 | 10 | 1910 | FKM | ||
| 167 543 277 | 63 | 50 | 10 | 3100 | FKM |
