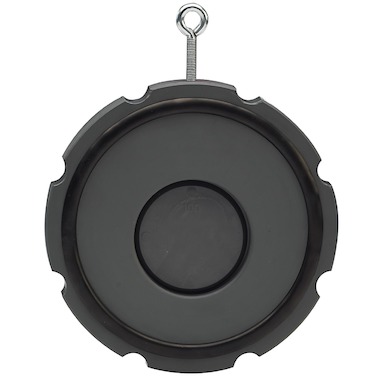

SP klapka s pružinou V4A
- Ďalšie informácie
Ďalšie informácie
| d(mm) | 40, 50, 63, 75, 90, 110, 140, 160, 225, 280, 315 |
|---|---|
| DN | 100, 125, 150, 200, 250, 300, 32, 40, 50, 65, 80 |
| PN(bar) | 10, 6 |
| Tesnenie | EPDM, FKM |
| Kat. číslo | d(mm) | DN | PN(bar) | Tesnenie | Množstvo | |
|---|---|---|---|---|---|---|
| 161 369 042 | 40 | 32 | 10 | EPDM | ||
| 161 369 043 | 50 | 40 | 10 | EPDM | ||
| 161 369 044 | 63 | 50 | 10 | EPDM | ||
| 161 369 045 | 75 | 65 | 10 | EPDM | ||
| 161 369 046 | 90 | 80 | 10 | EPDM | ||
| 161 369 047 | 110 | 100 | 10 | EPDM | ||
| 161 369 049 | 140 | 125 | 10 | EPDM | ||
| 161 369 050 | 160 | 150 | 6 | EPDM | ||
| 161 369 051 | 225 | 200 | 6 | EPDM | ||
| 161 369 052 | 280 | 250 | 6 | EPDM | ||
| 161 369 053 | 315 | 300 | 6 | EPDM | ||
| 161 369 062 | 40 | 32 | 10 | FKM | ||
| 161 369 063 | 50 | 40 | 10 | FKM | ||
| 161 369 064 | 63 | 50 | 10 | FKM | ||
| 161 369 065 | 75 | 65 | 10 | EPDM | ||
| 161 369 066 | 90 | 80 | 10 | FKM | ||
| 161 369 067 | 110 | 100 | 10 | FKM | ||
| 161 369 069 | 140 | 125 | 10 | FKM | ||
| 161 369 070 | 160 | 150 | 6 | FKM | ||
| 161 369 071 | 225 | 200 | 6 | FKM | ||
| 161 369 072 | 280 | 250 | 6 | FKM | ||
| 161 369 073 | 315 | 300 | 6 | FKM |
